Request for quotations

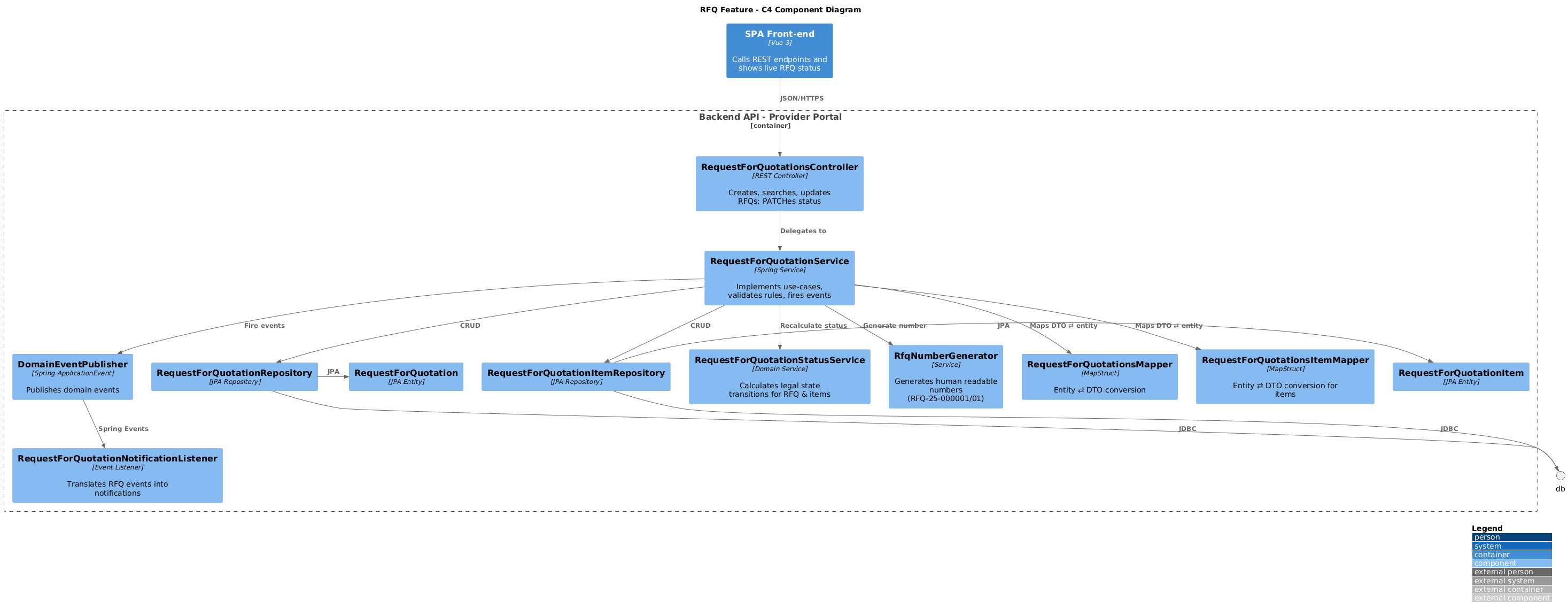

Overview (C4 Component)

Black-box description of components

Component	Responsibility	Provided Interface(s)	Consumed Interface(s)
RequestForQuotationsController	Entry point for RFQ CRUD & status PATCH.	REST /api/v1/rfqs/** (OpenAPI)	—
RequestForQuotationService	Implements all RFQ use-cases; enforces authorisation & validation; coordinates sub-services.	Java/Spring service API (called only by the controller)	JPA Repos, Status Service, Number Generator, Mapper, DomainEventPublisher
RequestForQuotationRepository	Persistence of RequestForQuotation aggregate.	Spring-Data JPA	MySQL © JDBC
RequestForQuotationItemRepository	Persistence of item sub-aggregate.	Spring-Data JPA	MySQL
RequestForQuotationStatusService	Pure domain logic: compute legal status and cascades.	Java class	—
RfqNumberGenerator	Produces sequential numbers using a Year-Sequence table.	Java class	RfqNumberSequenceRepository (not shown)
RequestForQuotationsMapper / ItemMapper	MapStruct mappers DTO ⇄ Entity.	Java interface	—
DomainEventPublisher	Publishes Spring events (RequestForQuotationCreatedEvent, StatusChangedEvent).	Spring ApplicationEventPublisher	—
RequestForQuotationNotificationListener	Converts domain events into notifications (e-mail & WebSocket).	Spring event listener	NotificationService (external package)

Important internal interfaces

Name	Signature / Protocol	Notes
createRFQ	POST /api/v1/requestForQuotations – body RequestForQuotationCreateRequest	Validates body, returns 201 Created with RequestForQuotationResponse.
updateRFQ	PUT /api/v1/requestForQuotations/{year}/{seq}/{ver}	Idempotent version bump, forbidden if status ≠ OPEN/IN_PROGRESS.
patchRFQStatus	PATCH /api/v1/requestForQuotations/{y}/{s}/{v}/status – body {status}	Uses RequestForQuotationStatusService.canTransition(...).
RFQ-created event	Spring event object { rfqId: Long }	Consumed by NotificationListener → e-mail + WebSocket push.
