5.1 Motivation for this decomposition​

Separation of concerns – UI logic lives in a lightweight Vue SPA, while all business rules sit behind a strongly-typed Spring API.

Independent lifecycle – Front-end, back-end and database each ship as their own Docker image (docker-compose.yml) so they can be rebuilt, restarted or scaled separately without breaking the others.

12-factor compliance – configuration via env-vars and stateless containers prepare the project for future cloud moves, yet the footprint remains small enough for a single VPS.

Testability & evolvability – the backend’s hexagonal modules (see level-2 component diagrams) make domain logic unit-testable and ready for extraction into separate services when needed.

5.2 Contained building blocks (black-box view)​

NameResponsibility
SPA FrontendDelivers all screens, calls the REST API, subscribes to WebSocket topics, and enforces basic field validation.
Backend APIImplements domain use-cases (RFQ, Quote, Provider …), authentication/authorisation, notification dispatch, integration stubs for future PO & IMS links.
Relational DBSingle MySQL schema that persists every aggregate (users, providers, trucks, RFQs, quotes, evaluations, …).

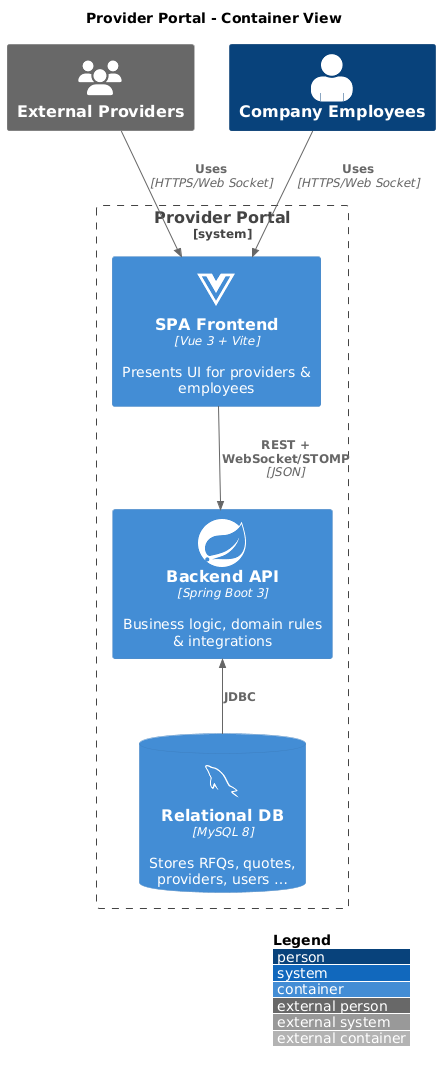

5.3 Important system interfaces​

InterfaceFrom → ToProtocol & FormatNotes
REST API v1Frontend → BackendHTTPS, JSON, OpenAPI 3.1CRUD for every aggregate; JWT bearer token required.
WebSocketBackend → FrontendWSS, STOMP, JSONReal-time in-app notifications (RFQ status, new quote, etc.).
JDBCBackend ↔ DatabaseMySQL nativeConnection pool (Hikari), flyway migrations at startup.
Package / FeatureDiagram file (PlantUML)What it shows
security-auth-user (security, users, accesses, registration_request)component_security_auth.pumlFilters, JWT provider, user/role entities, registration workflow
rfq-module (request_for_quotations, request_for_quotations_items, status)component_rfq.pumlControllers, services, status matrix, number generator
quote-module (quote)component_quote.pumlQuote controller/service/repository, status logic
provider-module (provider, notification)component_provider.pumlProvider CRUD, search spec factory, notification listeners
fleet-module (truck, antenna, technical_specification)component_fleet.pumlTruck CRUD, spec validator, antenna services
evaluation-module (evaluation)component_evaluation.pumlEvaluation controller/service, category & rating handling
