3. Context and scope

Ar42 specifications helper

Contents

System scope and context - as the name suggests - delimits your system (i.e. your scope) from all its communication partners (neighboring systems and users, i.e. the context of your system). It thereby specifies the external interfaces.

If necessary, differentiate the business context (domain specific inputs and outputs) from the technical context (channels, protocols, hardware).

Motivation

The domain interfaces and technical interfaces to communication partners are among your system’s most critical aspects. Make sure that you completely understand them.

Form

Various options:

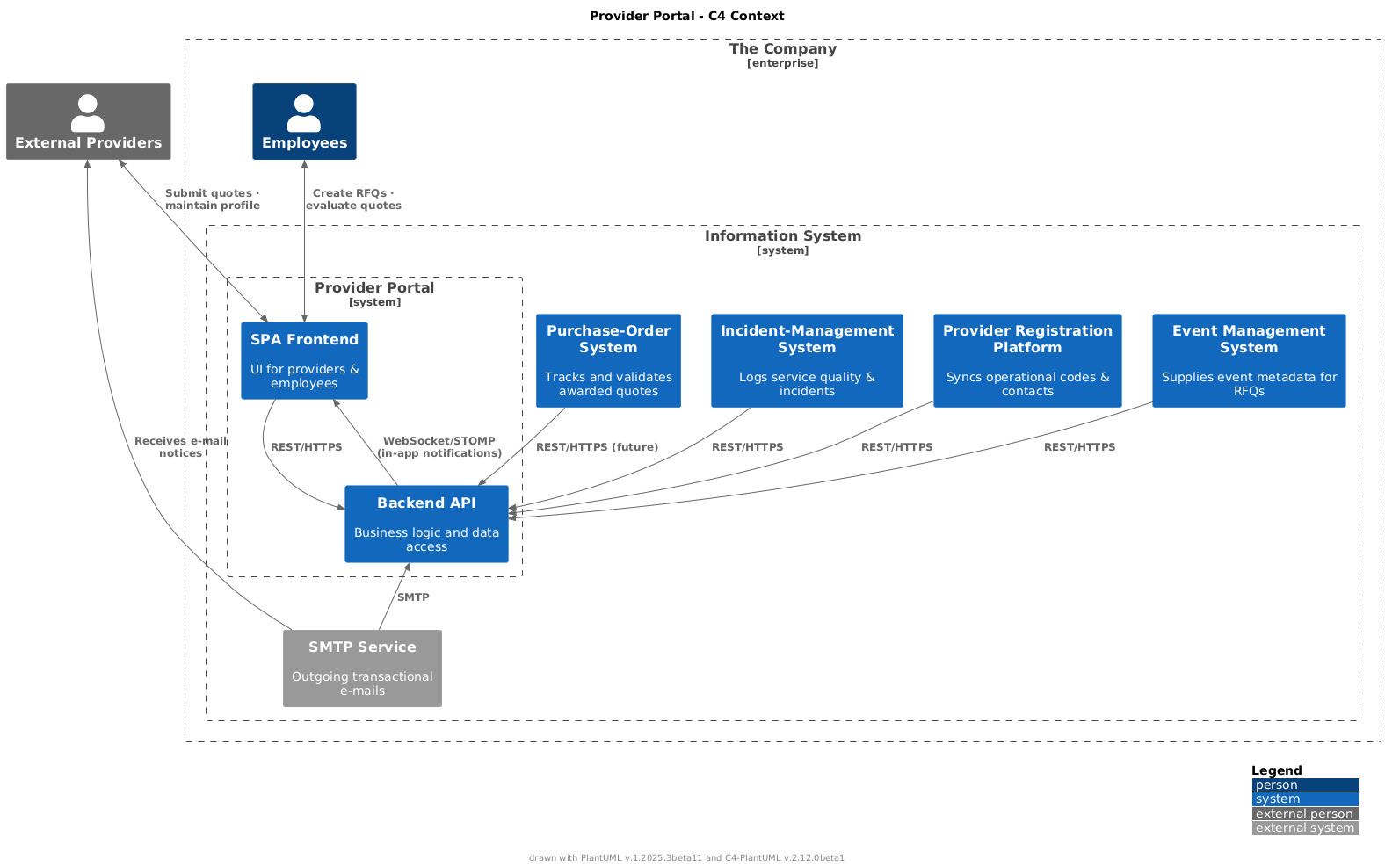

• Context diagrams
• Lists of communication partners and their interfaces.

3.1 Business context

Ar42 specifications helper

Contents

Specification of all communication partners (users, IT-systems, …) with explanations of domain specific inputs and outputs or interfaces. Optionally you can add domain specific formats or communication protocols.

Motivation

All stakeholders should understand which data are exchanged with the environment of the system.

Form

All kinds of diagrams that show the system as a black box and specify the domain interfaces to communication partners.

Alternatively (or additionally) you can use a table. The title of the table is the name of your system, the three columns contain the name of the communication partner, the inputs, and the outputs.

Communication partner	Input to Provider Portal	Output from Provider Portal	Main business purpose	In/Out Scope
External Providers	• Quote (price, availability) • Profile updates (fleet, contacts) In-app notification (real-time)	• RFQ (requirements, SLA) • Award / rejection notification	Enable competitive quoting and up-to-date supplier data	In
Employees	• New RFQ (+event needs) • Evaluation scores In-app notification when quotes arrive or RFQ status changes	• Short-listed providers • Final award decision • Evaluation dashboards	Plan events, compare offers, monitor quality	In
Purchase-Order System	• Purchase-order reference & status (future)	—	Formalise orders in financial system	Out
Incident-Management System	• Incident reports & severity	—	Feed quality scoring for suppliers	Out
Provider Registration Platform	Provider registration operational	• Canonical provider data set	Keep contact & operational codes in sync	Out
Event Management System	• Event metadata (location, date, lead time)		Re-use event information inside RFQ	Out
SMTP Service	—	• Transactional e-mails (RFQ issued, quote received, award...)	Notify users and suppliers	In

3.1.1 Uses Cases

3.1.2 Conceptual model

3.2 Technical context

Ar42 specifications helper

Contents

Technical interfaces (channels and transmission media) linking your system to its environment. In addition a mapping of domain specific input/output to the channels, i.e. an explanation with I/O uses which channel.

Motivation

Many stakeholders make architectural decision based on the technical interfaces between the system and its context. Especially infrastructure or hardware designers decide these technical interfaces.

Form

E.g. UML deployment diagram describing channels to neighboring systems, together with a mapping table showing the relationships between channels and input/output.

Channel / Protocol	Source → Target	Domain I/O transported	Security & QoS
HTTPS / REST v1	Browser SPA → Backend	JSON API (OpenAPI 3.1), CRUD RFQ, quote upload, evaluation data	JWT, < 1 s p95
WSS (WebSocket) / STOMP	Backend → Browser SPA	Real-time notification message (JSON)	JWT in CONNECT frame, server heartbeat 10 s
HTTPS / REST v1	Backend ↔ POS / IMS / PRP / EMS	JSON API (OpenAPI 3.1)	_
SMTP (TLS)	Backend → SMTP Service → Recipients	RFC-822 e-mails	_
JDBC	Backend ↔ MySQL 8	Relational data	Encrypted connection, pooled (Hikari)
TCP/SSH	DevOps laptop → VPS	Deployment artefact	Key-based

Domain I/O	Channel
In-app notification	WSS / STOMP
Quote, RFQ, Evaluation, Trucks	HTTPS / REST
E-mail notice	SMTP
Provider master data	REST
